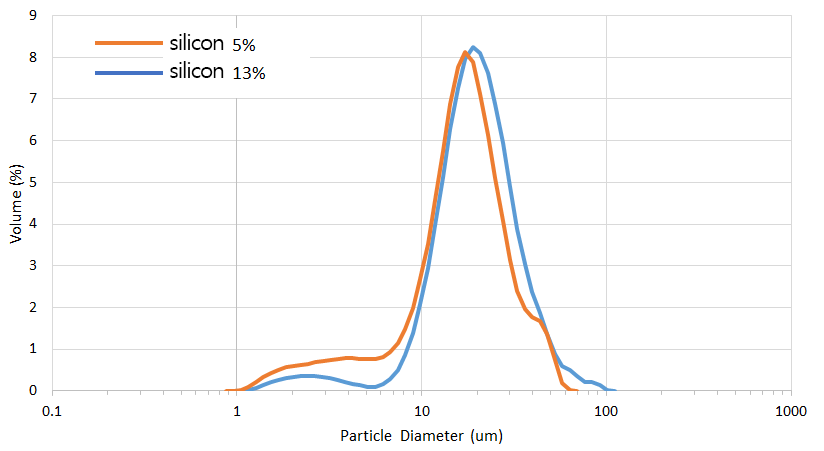

Particle size distribution analysis
| D10 (㎛) | D50 (㎛) | D90 (㎛) | Dmax (㎛) |
|---|
| Silicon 5% |
|---|
| 11.01 | 20.45 | 38.03 | 101.1 |
| Silicon 13% | 5.62 | 17.53 | 33.15
| 63.41 |
|---|

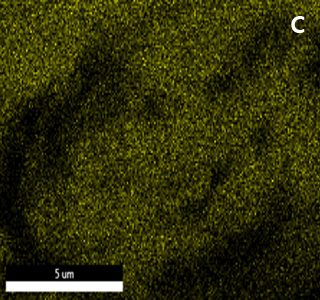

Raw material surface and component analysis

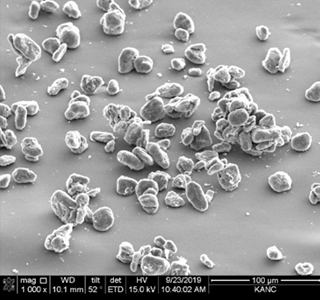

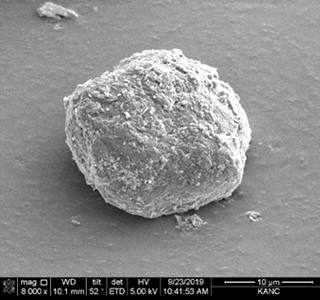

Silicon 5%

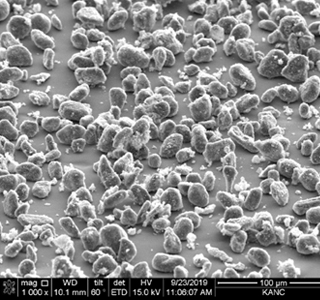

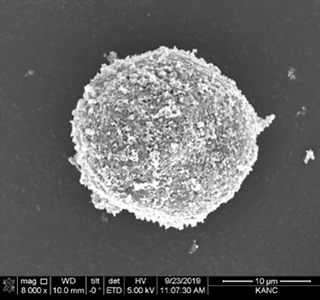

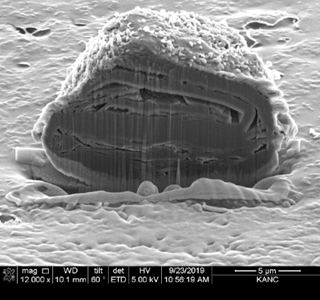

Silicon 13%

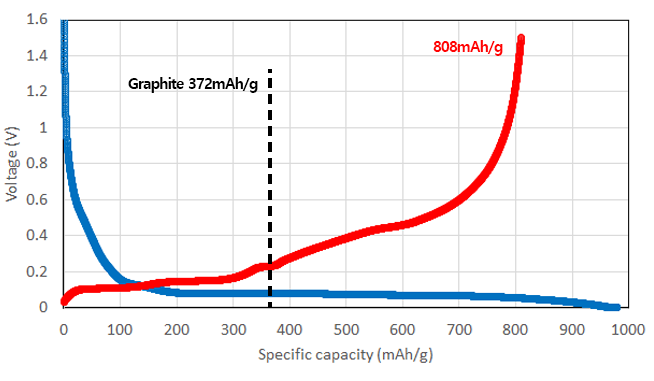

Electrical characteristic analysis

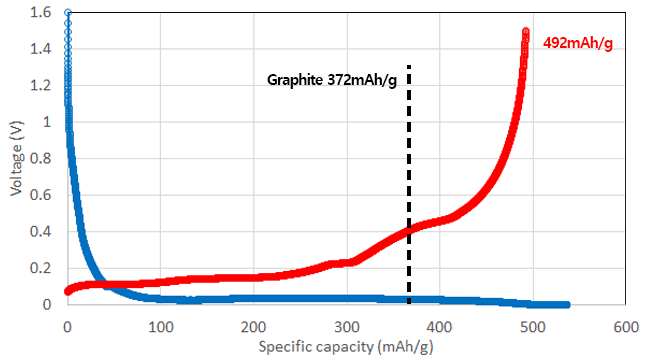

Half cell – Silicon 5%
Half cell – Silicon 13%
Full cell test – Silicon 13%
| Existing battery | Si 13% battery
| Reference |
|---|
Flight
time. |
|---|
| 20 min | 31 min
| 155% ↑
|
